SentryPlus Alert® technology offers versatile solutions for protection, detection, and notification. Select backflow preventer assemblies feature automatic flood protection by detecting continuous relief valve discharge. This condition can worsen with a blocked or undersized drain and lead to significant damage. Other select assemblies integrated with the system provide monitoring for pressure fluctuations and early warnings for freezing conditions.

Flood Protection Shutdown Control Valves — Series LFF113FP safeguards property by continuously monitoring RPZ backflow relief valve discharge. When abnormal discharge is detected, the system automatically shuts off the water supply, helping prevent potential flood-related damage.

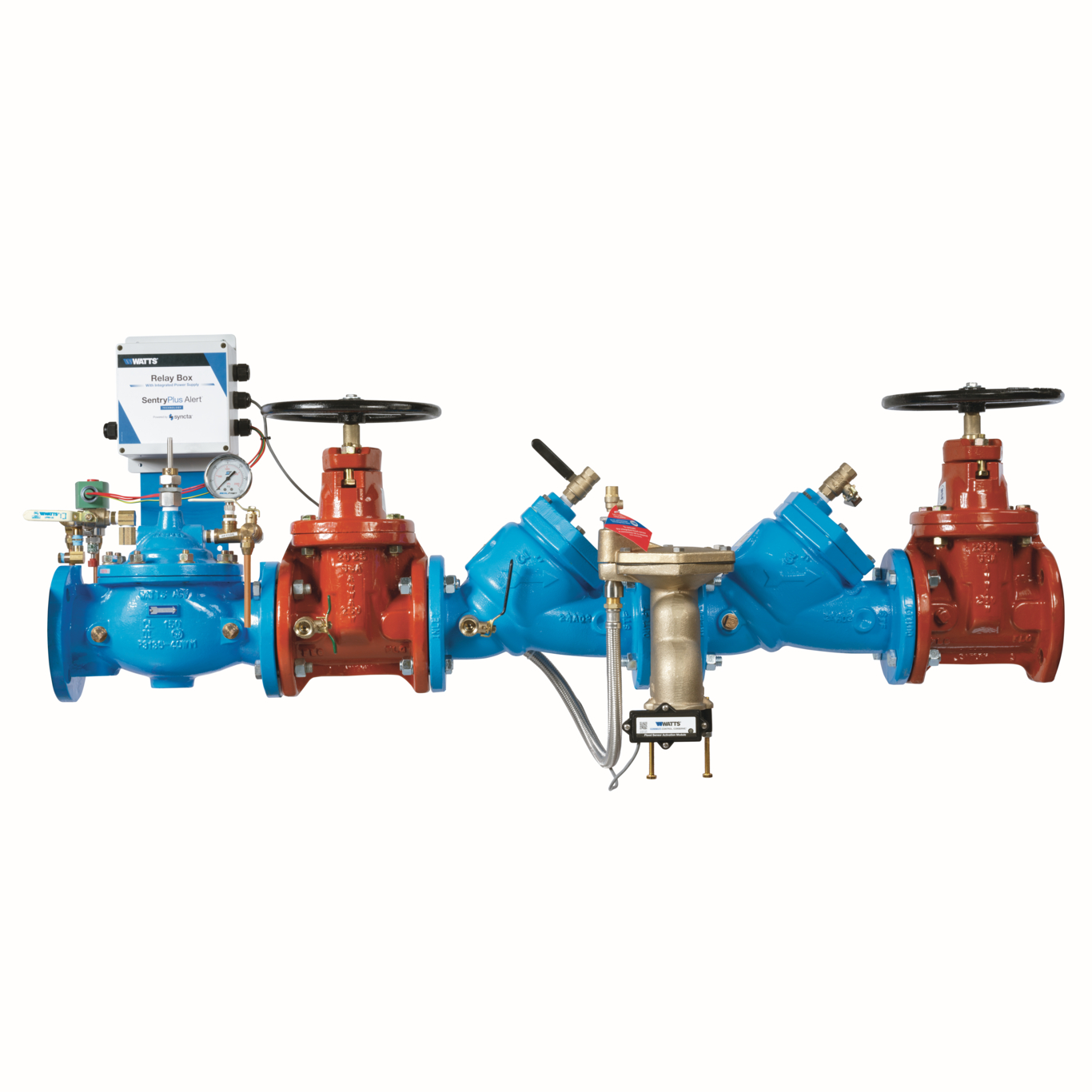

Series PVS-7000 Pre-Engineered Flood Protection Valve Station with SentryPlus Alert technology, a configured water flow control system, assembled from proven, reliable components meets exacting project application requirements. Consists of Series LFF113FP automatic shutdown control valve and relay box, Reduced Pressure Zone backflow preventer (Series LF909 Large or Series 957), and sensor technology.

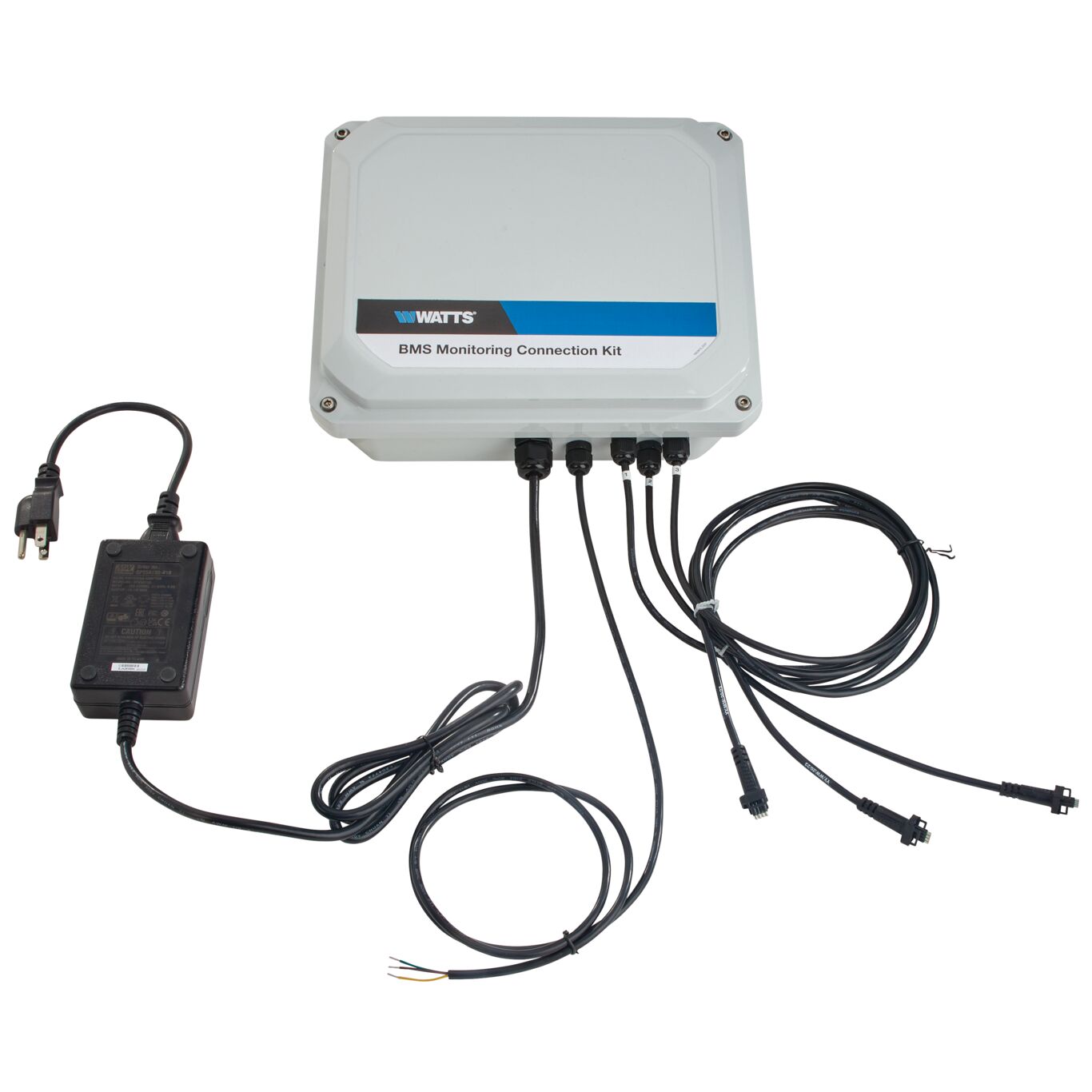

Flood Detection — Enhancing reduced pressure zone and detector assemblies with the SentryPlus Alert® system and flood sensors add proactive notification capabilities to detect continuous relief valve discharge. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS‑485 Modbus or the Nexa® platform through Wi-Fi.

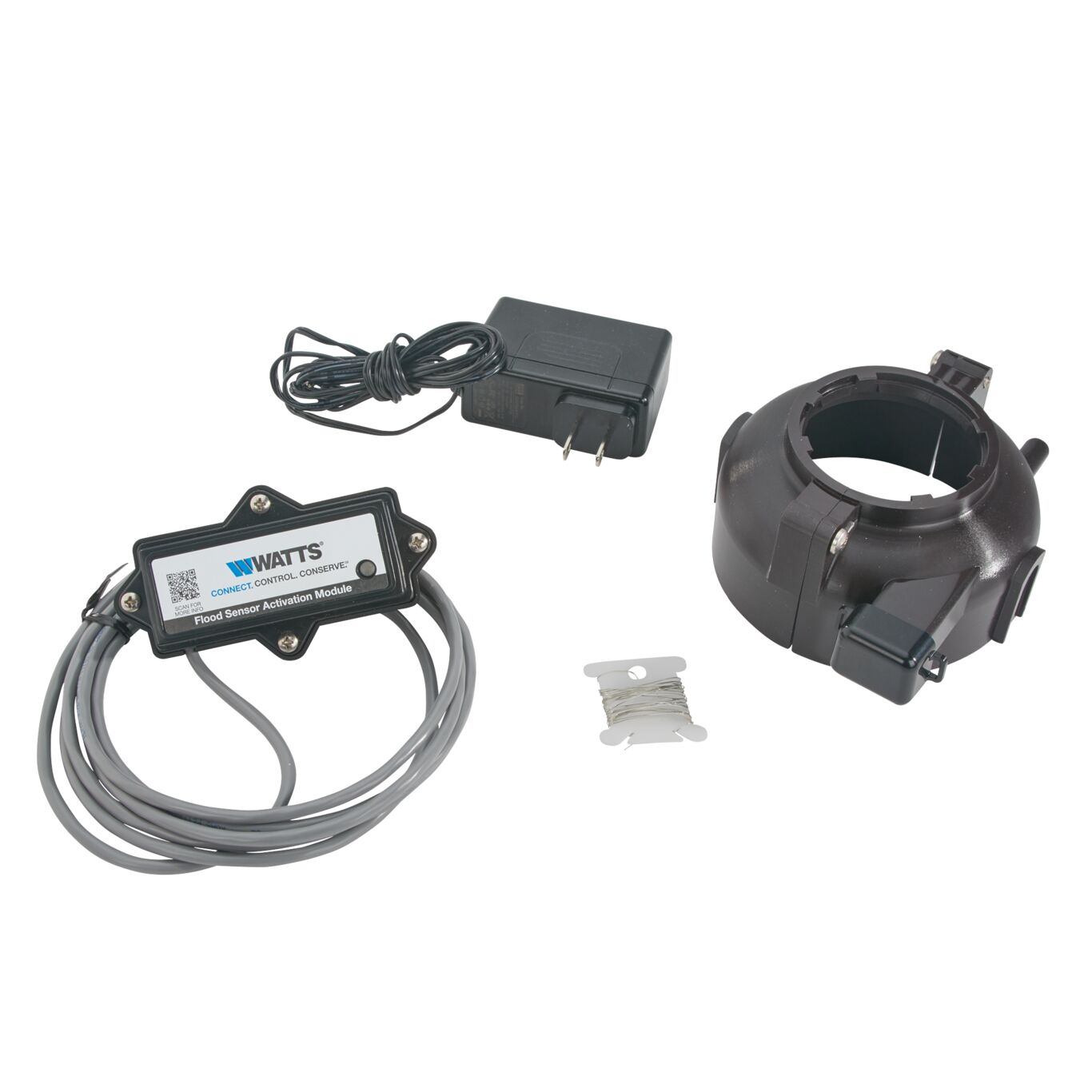

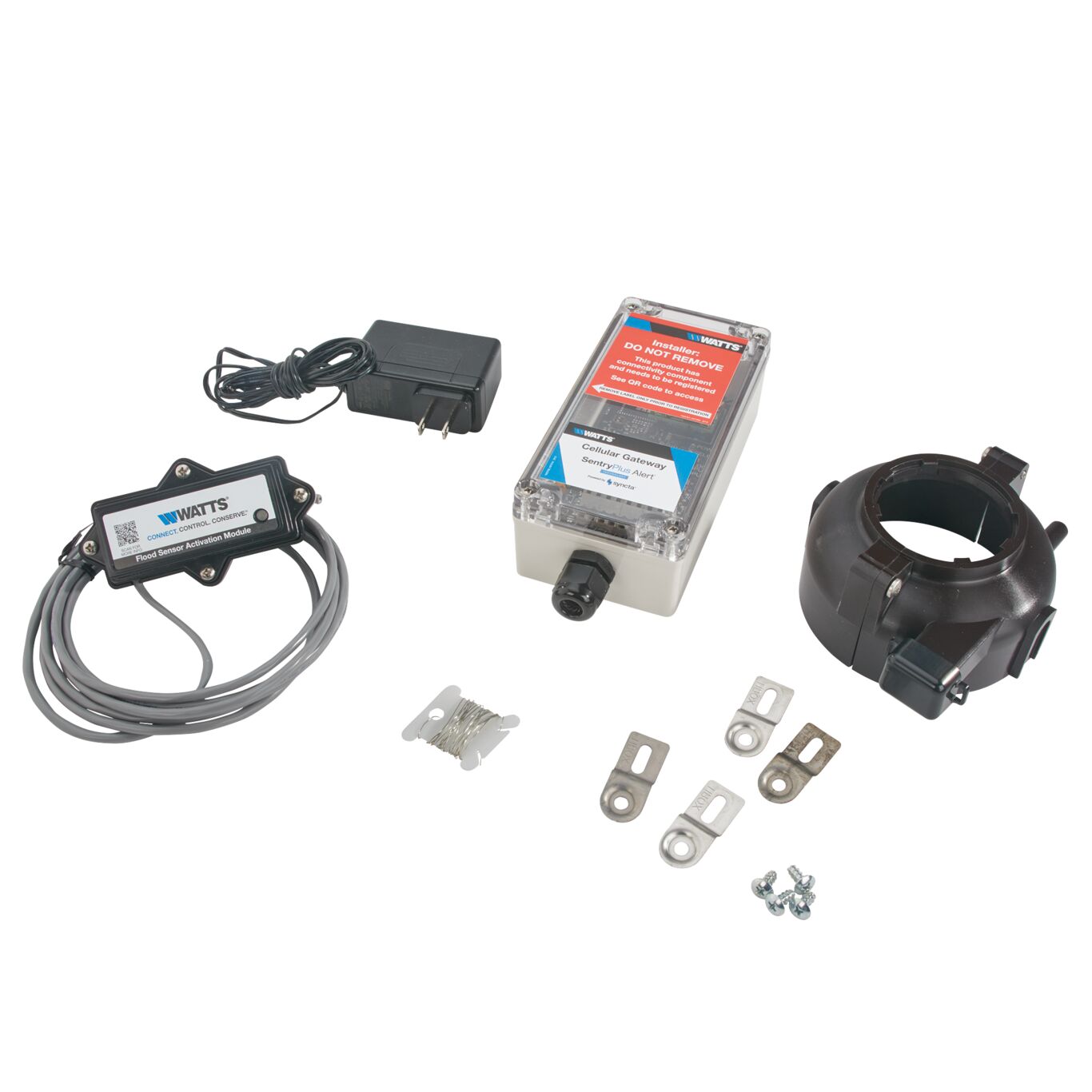

A flood detection upgrade option, the Air Gap Flood Sensor Connection Kit is compatible with any RPZ assembly system including a metal air gap and a 2-inch female NPT connection. Mounted at the base of the air gap, the sensor is triggered when the relief valve discharge exceeds 3 GPM. The kit consists of sensor and activation components and supports integration with BMS and cellular network communication.

To learn more visit: Flood Protection Backflow System

Pressure Monitoring — Assess the performance of select backflow preventer assemblies with integrated sensor technology on test cocks to measure pressure fluctuations at three points. Available on Model IOT of Series LF007 and LF709 with NRS gate valves, and suitable for non-fire protection applications. Requires an add-on monitoring connection kit to collect, convert, and transmit pressure data. Supports integration with BMS. The replacement kit includes three sensor modules.

To learn more visit: Series LF007-LF709 with Pressure Monitoring

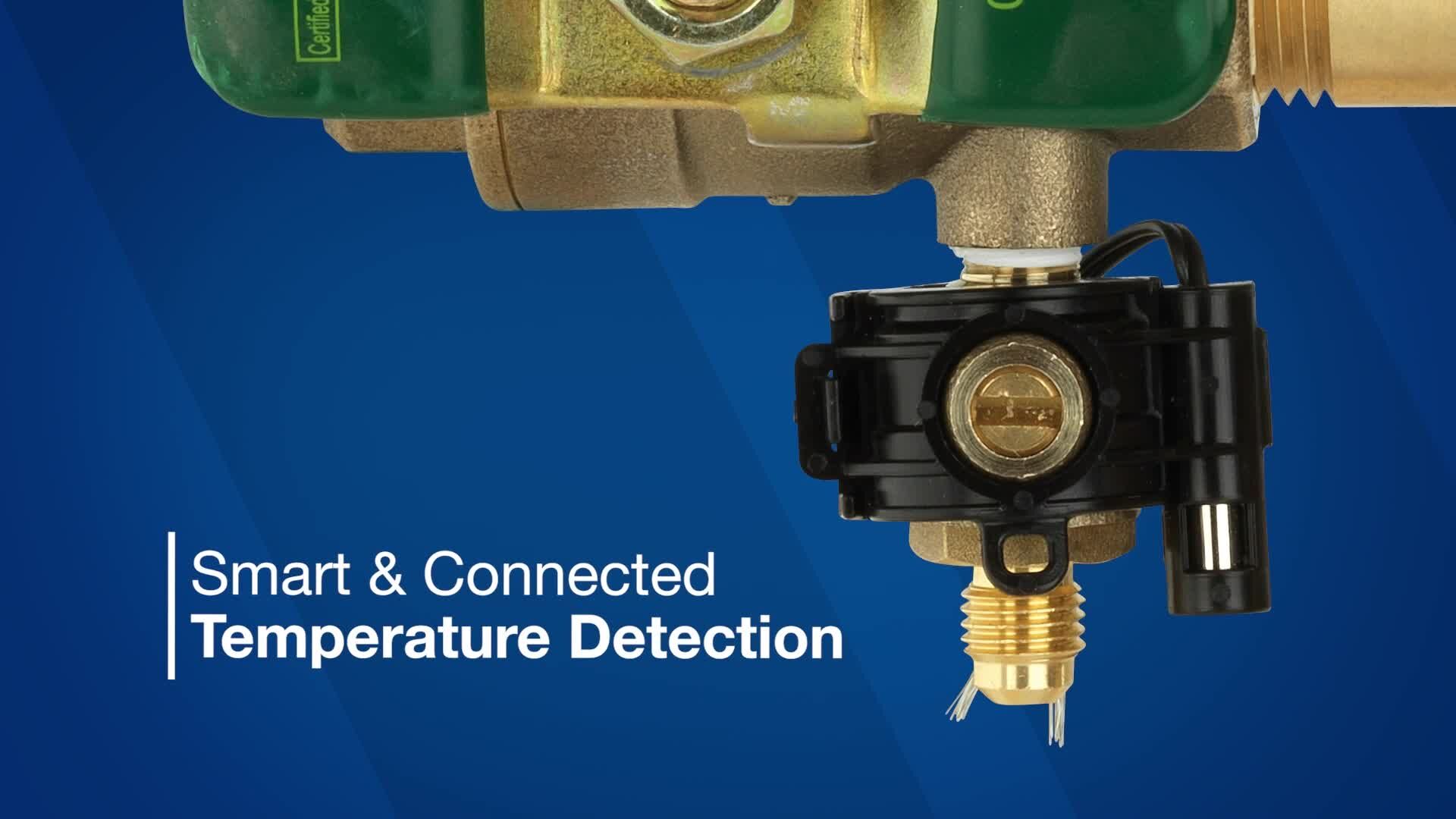

Freeze Detection — Safeguard small-diameter devices from freezing conditions with sensor-based temperature monitoring. The system can alert facility personnel when the temperature approaches and reaches the freezing point. The alert capability is activated through an add-on connection kit compatible with Wi-Fi networks, BMS, and irrigation management systems (IMS). Each two-sensor kit includes one for the valve assembly and the other for standalone operation at cold-sensitive, water-bearing equipment. Freeze sensor replacements are available.

To learn more visit: Freeze Detection

Flood Detection for Reduced Pressure Zone Assemblies
Watts Series 009, LF009, LF909 Small/Large, LF919, 957, 994, PVS-7000
Ames Series C400, 4000SS
Any RPZ assembly system including a metal air gap with 2 IN female NPT connection

Flood Detection for Reduced Pressure Detector Assemblies
Watts Series 909RPDA, 957RPDA, LF957RPDA, 994RPDA
Ames Series C500, LFC500, 5000SS

Pressure Monitoring for Double Check Valve Assemblies
Watts Series LF007 Model IOT, 2½ IN and 3 IN
Watts Series LF709 Model IOT

Freeze Detection for Vacuum Breakers
Watts Series 800M4FR, LF800M4FR, 800M4QT, LF800M4QT

Freeze Detection for Double Check Valve Assemblies
Watts Series 007, LF007, SS007

Freeze Detection for Double Check Detector Assemblies
Watts Series 007M1DCDA

Freeze Detection for Ames Backflow Preventers
Ames Backflow Preventers - All Sizes
