Smart Strainer Differential Pressure Monitoring

Smart Strainers free your team to focus on other critical tasks!

Proactive-Alerts-with-Smart-Duplex-Strainers-1366x768

Proactive Alerts with Duplex Strainers When the differential pressure monitored across the strainer screen exceeds the pre-configured threshold, an alert is triggered that the basket needs flushing, enabling planned maintenance.

Automated-Maintenance-with-Smart-Wye-Strainers-1366x768

Automated Maintenance with Wye Strainers When the differential pressure monitored across the strainer screen exceeds the pre-configured threshold, an alert is triggered with notification to follow that the basket has been automatically flushed, reducing maintenance labor and time.

Prevent Clogging and
Flow Restrictions

Protect Equipment
from Damage

Reduce Maintenance
Labor & Time

How Smart & Connected Technology Works

GR-1-Smart Strainer 2_How-it-Works-1366x768

Pressure sensors come pre-installed on Duplex and Wye strainers (shown with connected sensor cables to inlet and outlet ports of a Wye strainer).

GR-2-Smart Strainer 2_How-it-Works-1366x768

Purchase of an add-on Connection Kit enables data to be collected from Duplex and Wye strainers and transmitted to your connection platform (shown with optional motorized ball valve for Wye strainers).

GR-3-Smart Strainer 2_How-it-Works-1366x768

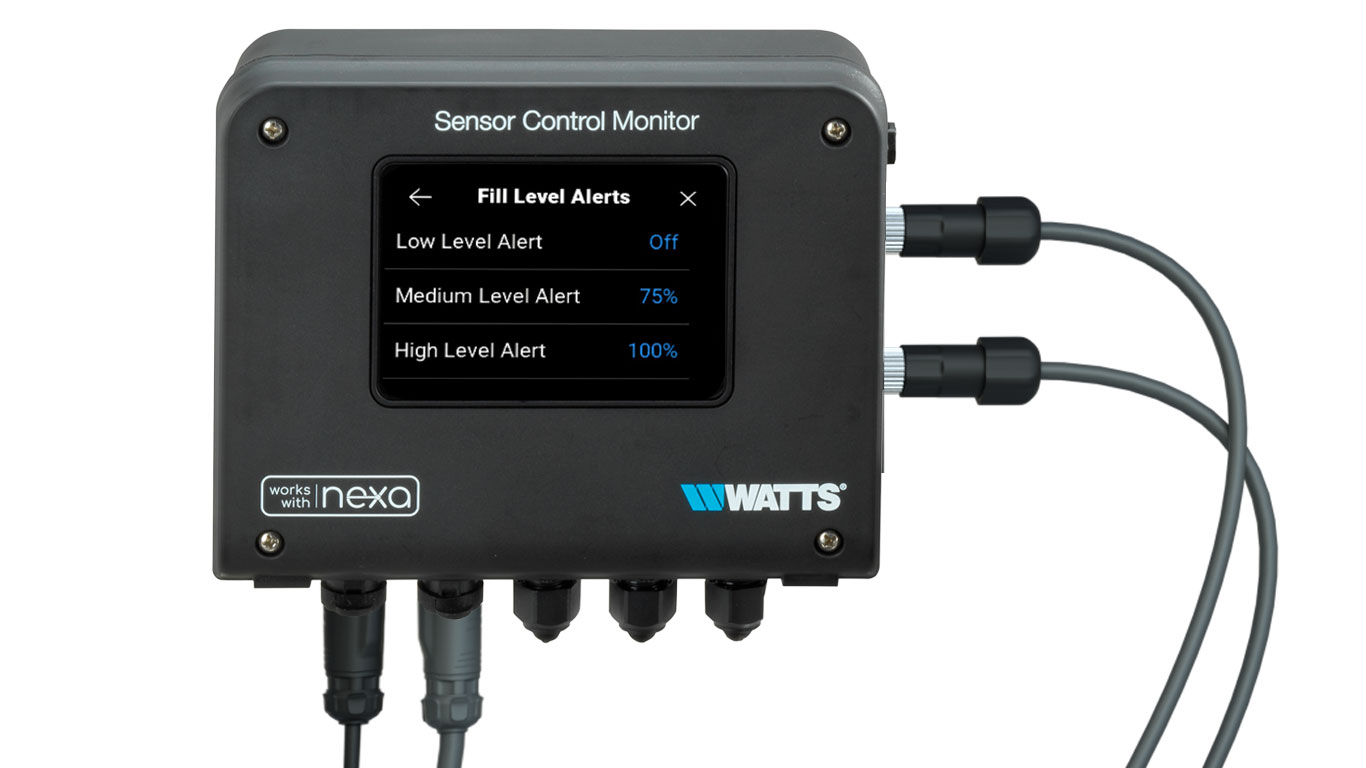

Setup of the Sensor Control Monitor supports pressure sensor technology through inlet and outlet measurements and specified basket fill levels on Duplex and Wye strainers.

GR-4-Smart Strainer 2_How-it-Works-1366x768

An alert is sent when the differential pressure across the Duplex or Wye strainer screen exceeds pre-configured thresholds, indicating that flushing of the basket will be needed.

GR-5-Smart Strainer 2_How-it-Works-1366x768

On Wye strainers, the optional motorized ball valve automatically opens to flush the basket into a pre-piped drain when the differential pressure across the screen exceeds the pre-configured threshold.

GR-6-Smart Strainer 2_How-it-Works-1366x768

On Wye strainers, alerts are sent when the basket is nearing fill capacity, and notification is sent when the basket has been automatically flushed!

Contact a Rep Find Your Connection Kit

Connects to Centralized Platforms for Real-Time Notifications

Choose the Connection Kit that's right for you. Alerts you can count on are just a few easy steps away via a wired connection to your BAS/BMS. Or, a Wi-Fi connection to Nexa, the water management platform from Watts.

Building Management

Setup is easy!

Install your strainer and find your Connection Kit

Purchase and wire your Connection Kit to activate the differential pressure monitoring technology and optional auto flush feature.

Configure the settings on the Sensor Control Monitor using the Setup Wizard and connect to your BAS/BMS or Nexa and to receive alerts about pressure drops, basket capacity, and strainer screen cleaning.

Contact a Rep Find Your Connection Kit

Frequently Asked Questions

Can I upgrade any existing strainer with smart strainer technology?
Does my new strainer include smart sensors?
Does my strainer with sensor need a Connection Kit to work?
Where does my data go?

Why should I connect my strainer to Nexa?
Who do I contact for technical support?
Can I use smart strainer technology on my Watts Wye Strainer?
Can the Sensor Control Module be installed outdoors?

Select Your Connection Kit to Activate your Strainer

Activated through these add-on Connection Kits, the sensor can trigger the alert system sending notification to facility personnel of a drop in pressure or when automated screen cleaning is performed (optional on wye strainers).

Model

Kit Type

Compatible With

For Sizes

Kit Includes

SKU: M6763135
Duplex Basket

Where to Buy

Connection Type:•Monitoring,
•Monitoring with Automated Blowdown
Kit: STR-SENSOR RPL-Class 150

Compatible With:691MFAB SM
692MFDB SM
791MFAH SM
792MFDH SM
792MFHH SM

For Sizes:2 to 24 IN

Includes 2 replacement pressure sensors with cables

SKU: M6763135
Wye

Where to Buy

Connection Type:•Monitoring,
•Monitoring with Automated Blowdown
Kit: STR-SENSOR RPL-Class 150

Compatible With:758CI SM
758CI-N SM

For Sizes:2 to 24 IN

Includes 2 replacement pressure sensors with cables

SKU: M6763136
Duplex Basket

Where to Buy

Connection Type:•Monitoring,
•Monitoring with Automated Blowdown
Kit: STR-SENSOR RPL-Class 600

Compatible With:794MFDH SM
794MFHH SM

For Sizes:2 to 12 IN

Includes 2 replacement pressure sensors with cables

SKU: M6763136
Wye

Where to Buy

Connection Type:•Monitoring,
•Monitoring with Automated Blowdown
Kit: STR-SENSOR RPL-Class 600

Compatible With:752CI SM
752CI-N SM
758G-DI SM

For Sizes:2 to 12 IN

Includes 2 replacement pressure sensors with cables

SKU: 1000000591
Duplex Basket

Where to Buy

Connection Type:•Monitoring
Kit: SCM-STR-Class 150

Compatible With:691MFAB SM
692MFDB SM
791MFAH SM
792MFDH SM
792MFHH SM

For Sizes:2 to 24 IN

Includes a sensor control monitor with 2 sensor cables, power adapter, mounting feet, and Quick Start Guide

SKU: 1000000591
Wye

Where to Buy

Connection Type:•Monitoring
Kit: SCM-STR-Class 150

Compatible With:758CI SM
758CI-N SM

For Sizes:2 to 24 IN

Includes a sensor control monitor with 2 sensor cables, power adapter, mounting feet, and Quick Start Guide

SKU: 1000000592
Duplex Basket

Where to Buy

Connection Type:•Monitoring
Kit: SCM-STR-Class 600

Compatible With:794MFDH SM
794MFHH SM

For Sizes:2 to 12 IN

Includes a sensor control monitor with 2 sensor cables, power adapter, mounting feet, and Quick Start Guide

SKU: 1000000592
Wye

Where to Buy

Connection Type:•Monitoring
Kit: SCM-STR-Class 600

Compatible With:752CI SM
752CI-N SM
758G-DI SM

For Sizes:2 to 12 IN

Includes a sensor control monitor with 2 sensor cables, power adapter, mounting feet, and Quick Start Guide

SKU: 1000001091
Wye

Where to Buy

Connection Type:•Monitoring with Automated Blowdown
Kit: SCM-STR-AUTOFLUSH 1/2

Compatible With:752CI SM
752CI-N SM
758CI SM
758CI-N SM
758G-DI SM

For Sizes:2 IN
